What Are the Different Types of PTO Tubes?
One of the primary distinctions in PTO tube design is between domestic (North American) and metric (European) systems. Domestic PTO tubes are generally characterized by square, rectangular, hexagonal, or splined profiles.
Power take-off (PTO) tubes are essential components in agricultural and industrial driveline systems, acting as the protective encasement for the drive shaft. They not only add structural strength and durability but also allow for necessary length compensation between the tractor’s PTO and the implement’s drive system. Over time, manufacturers have developed various PTO tube profiles to cater to different applications and performance requirements. In this article, we’ll explore the most common types of PTO tubes, focusing on their shapes, applications, and the differences between domestic and metric designs.
Domestic vs. Metric PTO Tubes
One of the primary distinctions in PTO tube design is between domestic (North American) and metric (European) systems. Domestic PTO tubes are generally characterized by square, rectangular, hexagonal, or splined profiles. These shapes offer robust performance under the heavy-duty conditions common in North American farming, where durability and ease of replacement are paramount. In contrast, metric PTO tubes—often found in European machinery—tend to feature profiles such as bell, lemon, or star shapes. These designs are engineered for constant velocity and reduced friction, especially in applications where smoother transitions are needed under variable loads.
Square and Rectangular PTO Tubes
Square and rectangular PTO tubes are among the most traditional designs in domestic driveline applications. Their straightforward geometry makes them easy to manufacture and maintain. Typically, the inner square or rectangular shaft mates with a correspondingly shaped tube, providing a snug fit that minimizes play and reduces the potential for damage during operation. This type of PTO tube is commonly used in standard tractor applications, where reliability and low-cost production are significant advantages. Their robust design can handle high torque loads, making them ideal for heavy-duty agricultural implements.

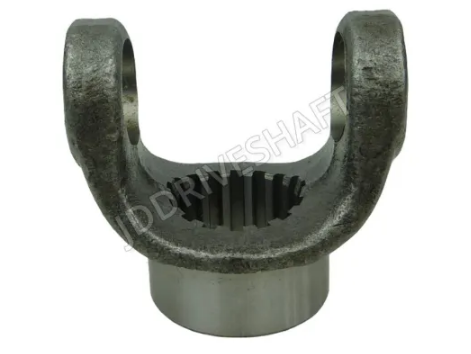

Splined PTO Tubes
Splined PTO tubes are designed with grooves or splines that interlock with a matching splined shaft or sleeve. This configuration reduces friction between moving parts and allows for smoother length compensation. Splined designs are particularly beneficial in constant velocity applications where minimal resistance is necessary to prevent excessive wear on CV joints. Additionally, the splined interface is more tolerant of dirt and debris, making it suitable for rugged environments where maintenance access may be limited.
Lemon Profile PTO Tubes
The lemon profile PTO tube is so named because its cross-sectional shape resembles a sliced lemon. This design is prevalent in both standard and constant velocity drivelines and is especially popular in metric systems. The curved surfaces of a lemon profile reduce friction and facilitate smoother telescoping movements, which can be critical when the driveshaft experiences significant changes in length during operation. Moreover, the unique shape provides multiple contact points that help distribute stress more evenly across the tube, enhancing overall durability.
Triangular PTO Tubes
Triangular PTO tubes are another variation that offers several advantages. With a three-sided cross-section, these tubes provide multiple contact surfaces while maintaining a lightweight structure. The triangular design is particularly effective in constant velocity applications, where precise alignment and reduced friction are necessary to prevent premature wear. In many cases, the triangular PTO tube is chosen for its balance between strength and flexibility, making it a popular choice among farmers who demand reliable performance under variable operating conditions.
Star-Shaped PTO Tubes
Star-shaped PTO tubes stand out due to their multiple lobes, which create several points of contact with the inner shaft. This design not only enhances the tube’s strength but also improves torque transfer and load distribution. Star tubes are often used in high-torque applications, such as large-scale farming equipment, where the demands on the PTO driveline are exceptionally high. The increased number of contact points reduces stress on any single area, thereby extending the life of both the tube and the drive system.
Other Profiles and Considerations
In addition to the main types outlined above, other profiles such as bell and hexagonal shapes also exist, albeit less commonly. These designs are typically specific to certain manufacturers or applications where particular performance characteristics are needed. When selecting a PTO tube, it is crucial to consider factors such as the type of machinery, operating conditions, and the specific requirements of the driveline system. For instance, low-friction surfaces and proper lubrication are essential for constant velocity applications, regardless of the tube’s shape.
Conclusion
Understanding the various types of PTO tubes is vital for ensuring optimal performance and longevity in power take-off driveline systems. Whether you are working with domestic systems that favor square, rectangular, or splined profiles, or metric systems that utilize lemon, triangular, or star-shaped tubes, selecting the right PTO tube can have a significant impact on the overall efficiency and durability of your machinery. By matching the tube type to the specific demands of your application, you not only improve performance but also minimize downtime and repair costs in the long run. As the industry continues to evolve, these innovations in PTO tube design remain essential in supporting the rigorous demands of modern agriculture and industrial applications.
